Archiving Framework

Purpose

The purpose of the archiving framework is to provide a structured approach to managing data archiving based on retention policies. It explains how data should be archived and eventually deleted based on a configurable retention period and archive retention period, ensuring proper data lifecycle management.

Motivation

Data archiving is crucial for ensuring that obsolete or inactive data is stored efficiently and securely, while still being accessible if needed. Over time, archived data needs to be purged to manage storage costs and maintain performance. The archiving framework enables data archiving and deletion processes which can be systematically controlled through data object and retention configurations.

Applicability

This pattern is applicable in any data solution built with the ExMeX Core Framework that requires long-term data retention for compliance or historical purposes while also needing to periodically clean up data to optimize storage. Typical scenarios include:

Logging and monitoring frameworks
Data solution environments
Audit trail management
Transactional history tracking

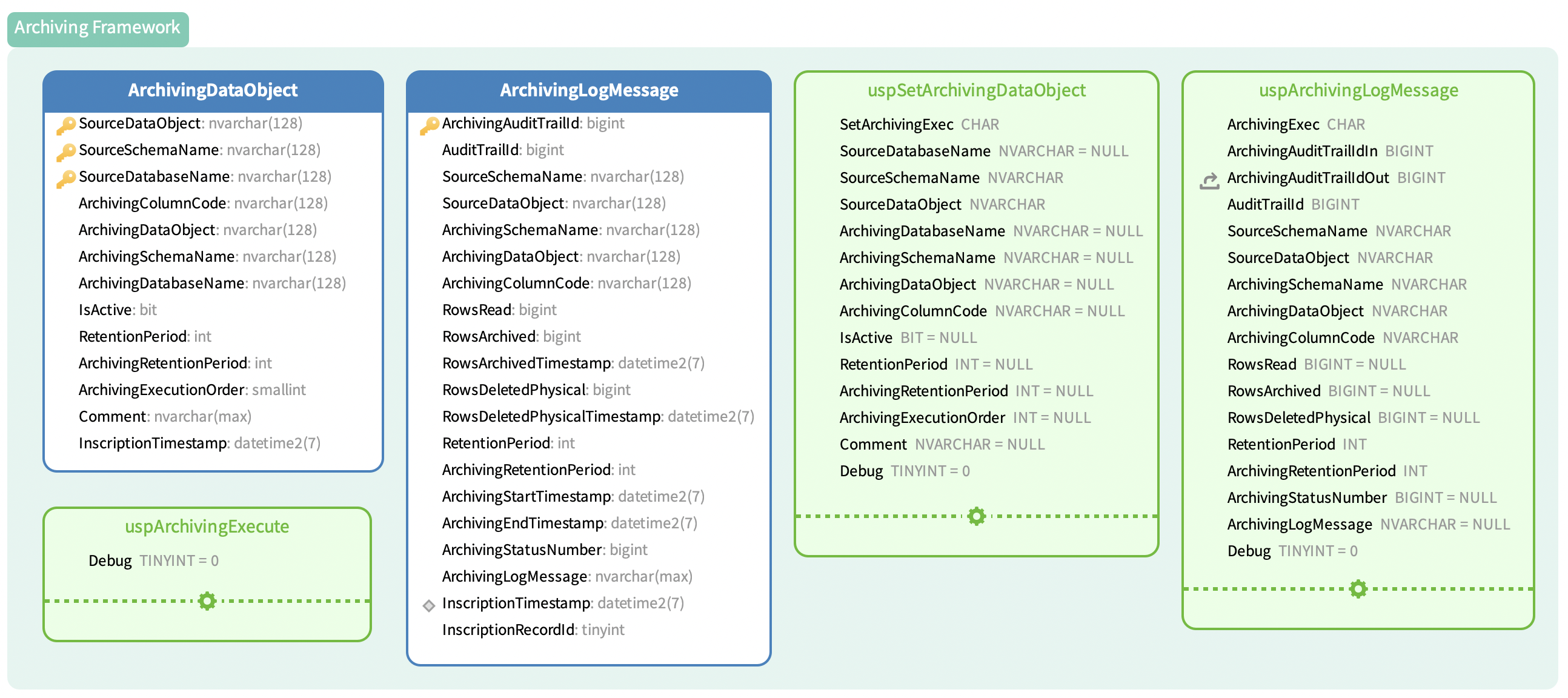

Structure

Retention Period Concept

The archiving process is controlled by two main variables:

Retention Period: Defines how long data should be retained in the active (source) table before being archived.
Archive Retention Period: Defines how long data should be kept in the archive table before being permanently deleted.

Both variables are globally set within the ExMeX Core Framework but can be customized for individual data objects as needed.

Total Retention Period Calculation:

Total Retention Period = Retention Period + Archive Retention Period

Example:

Retention Period: 365 days (1 year)
Archive Retention Period: 730 days (2 years)
Total Retention Period: 1,095 days (3 years)

Data Lifecycle Visualization

Archiving Process Flow

Timeline Example

Implementation Guidelines

Overview

To implement the archiving framework, follow these steps:

Create Archive Schema (if not exists)
Register Data Objects for archiving
Schedule Periodic Execution of archiving process
Monitor Archiving Logs for success and issues

Step 1: Create Archive Schema

Before registering data objects, ensure the archive schema exists:

-- Check and create archive schema
IF NOT EXISTS (SELECT 1 FROM sys.schemas WHERE name = N'MetadataZoneArchive')
BEGIN
    EXEC('CREATE SCHEMA MetadataZoneArchive AUTHORIZATION dbo')
    PRINT 'Archive schema MetadataZoneArchive created successfully.'
END
GO

Step 2: Register Data Objects for Archiving

Use the stored procedure uspSetArchivingDataObject to register data objects for archiving.

Important Considerations:

If the archiving table already exists, the process assumes archiving is either already configured or the table is used for other purposes
A unique (source) data object name, schema, database, archiving column code, and is active parameter must be provided
The archiving column must have an index for optimal performance

Example of Data Object Registration:

DECLARE @ReturnProcessStatusNumber INT

EXEC @ReturnProcessStatusNumber = MetadataZoneCore.uspSetArchivingDataObject
     @SetArchivingExec          = N'A',
     @SourceSchemaName          = N'MetadataZone',
     @SourceDataObject          = N'ProcessStepVapourTrail',
     @ArchivingColumnCode       = N'ProcessEndDateTime',
     @IsActive                  = 1,
     @RetentionPeriod           = 30,   -- Optional: Override global setting
     @ArchivingRetentionPeriod  = 365,  -- Optional: Override global setting
     @Comment                   = N'ExMeX Framework logging table'

SELECT @ReturnProcessStatusNumber AS [Return Status]
-- Return Status: 0 = Success
GO

For more detailed examples, see uspSetArchivingDataObject.

Step 3: Schedule Archiving Execution

A periodic job (e.g., SQL Server Agent, Crontab) should be set up to execute the uspArchivingExecute stored procedure, which triggers the archiving process for all registered data objects.

Recommended Scheduling:

Daily execution during off-peak hours (e.g., 2:00 AM)
Frequency depends on data volume and growth rate
For high-volume tables, consider multiple executions per day

SQL Server Agent Job Example:

USE msdb
GO

-- Create SQL Agent Job
EXEC dbo.sp_add_job
    @job_name = N'ExMeX Archiving - Daily',
    @enabled = 1,
    @description = N'Daily execution of ExMeX archiving framework'
GO

EXEC dbo.sp_add_jobstep
    @job_name = N'ExMeX Archiving - Daily',
    @step_name = N'Execute Archiving',
    @subsystem = N'TSQL',
    @database_name = N'YourDatabaseName',
    @command = N'DECLARE @ReturnStatus INT
EXEC @ReturnStatus = MetadataZoneCore.uspArchivingExecute
IF @ReturnStatus <> 0
    RAISERROR(''Archiving execution failed'', 16, 1)',
    @retry_attempts = 2,
    @retry_interval = 15
GO

EXEC dbo.sp_add_schedule
    @schedule_name = N'Daily at 2 AM',
    @freq_type = 4,  -- Daily
    @freq_interval = 1,
    @active_start_time = 020000  -- 02:00:00 AM
GO

EXEC dbo.sp_attach_schedule
    @job_name = N'ExMeX Archiving - Daily',
    @schedule_name = N'Daily at 2 AM'
GO

EXEC dbo.sp_add_jobserver
    @job_name = N'ExMeX Archiving - Daily'
GO

Step 4: Monitor Archiving Logs

The table MetadataZoneCore.ArchivingLogMessage tracks all archiving operations, including how many rows are read, archived, and deleted.

Log Table Columns:

Column	Description
`RowsRead`	Number of records found in the source data object eligible for archiving
`RowsArchived`	Number of records successfully moved from source to archive
`RetentionPeriod`	Retention period applied (threshold date for archiving)
`RowsDeletedPhysical`	Number of records physically deleted from the archive
`ArchivingRetentionPeriod`	Archive retention period applied (threshold date for deletion)
`ArchivingStatusNumber`	0 = Successful, 1 = Running, >1 = Error
`ErrorMessage`	Error details if ArchivingStatusNumber > 1

Query Archiving Logs:

-- View recent archiving activity
SELECT
    InscriptionTimestamp,
    SourceSchemaName + '.' + SourceDataObject AS DataObject,
    RowsRead,
    RowsArchived,
    RowsDeletedPhysical,
    ArchivingStatusNumber,
    CASE ArchivingStatusNumber
        WHEN 0 THEN 'Success'
        WHEN 1 THEN 'Running'
        ELSE 'Error'
    END AS Status,
    ErrorMessage
FROM MetadataZoneCore.ArchivingLogMessage
WHERE InscriptionTimestamp >= DATEADD(DAY, -7, GETDATE())
ORDER BY InscriptionTimestamp DESC

Pre-Configured Archiving

The ExMeX Core Framework automatically includes archiving configuration for internal logging and monitoring tables. These are pre-configured with default retention periods and can be customized as needed.

Default Core and Extension Framework Archiving Data Objects

The data records in the following data objects are archived by default to the given archive data object:

Source Data Object	Archive Data Object	Purpose
`SatParallelAsyncLPSChunkLog`	`SatParallelAsyncLPSChunkLogArchive`	Parallel processing logs
`SatProcessStepDeltaExport`	`SatProcessStepDeltaExportArchive`	Delta export tracking
`SatProcessStepDeltaExportOverride`	`SatProcessStepDeltaExportOverrideArchive`	Export override logs
`ProcessStepVapourTrail`	`ProcessStepVapourTrailArchive`	Process execution logs
`BatchRunVapourTrail`	`BatchRunVapourTrailArchive`	Batch run history
`ArchivingLogMessage`	`ArchivingLogMessageArchive`	Archiving process logs
`ModuleLoadWindow`	`ModuleLoadWindowArchive`	Load window history
`BatchExecuteLoadProcessStepLog`	`BatchExecuteLoadProcessStepLogArchive`	Batch execution logs

Note: These configurations are created during framework installation and use global retention settings by default.

Considerations and Consequences

Considerations

Performance Impact

Regular archiving can impact system performance during execution
Recommendation: Schedule archiving tasks during off-peak hours or maintenance windows
Monitor execution duration and adjust frequency if needed

Data Integrity

Ensure that archived data does not contain critical, frequently accessed records before applying archiving rules
Verify that foreign key relationships are handled correctly
Test archiving configuration in non-production environment first

Scalability

For large datasets, consider the time required for archiving operations
Monitor archive table growth and storage consumption
Consider partitioning strategies for very large archive tables

Dependencies and Execution Order

Some data objects must be archived before others due to foreign key constraints or logical dependencies
Use ArchivingExecutionOrder parameter to control the sequence
Lower values are processed first (e.g., order 1 before order 10)
Tables with NULL execution order are processed last

Example Dependency Scenario:

-- Parent table (process first)
EXEC MetadataZoneCore.uspSetArchivingDataObject
     @SetArchivingExec = N'U',
     @SourceSchemaName = N'MetadataZone',
     @SourceDataObject = N'BatchRunVapourTrail',
     @ArchivingExecutionOrder = 1  -- Archive first
GO

-- Child table (process after parent)
EXEC MetadataZoneCore.uspSetArchivingDataObject
     @SetArchivingExec = N'U',
     @SourceSchemaName = N'MetadataZone',
     @SourceDataObject = N'ProcessStepVapourTrail',
     @ArchivingExecutionOrder = 2  -- Archive after parent
GO

Consequences

Data Restoration

Archived data is harder to query than active data (requires joining archive tables)
Data remains accessible until permanently deleted
Important: Once deleted from archive, data cannot be recovered without a backup
Consider backup strategy for archive tables before physical deletion

Compliance

Archiving and deletion processes help meet regulatory compliance requirements
Retention policies are enforced automatically
Obsolete data is removed after the designated period
Audit trail is maintained in ArchivingLogMessage table

Storage Management

Active tables remain smaller, improving query performance
Archive tables grow over time until records are deleted
Use data compression on archive tables to optimize storage
Monitor total storage consumption (active + archive)

Operational Overhead

Requires regular monitoring of archiving logs
Failed archiving operations need investigation
Archive schemas and tables need maintenance
Documentation of retention policies must be kept current

Troubleshooting

Common Issues and Solutions

Issue: Archiving Not Running

Symptoms:

No new entries in ArchivingLogMessage
Data accumulating in source tables

Checks:

-- Check if data objects are registered and active
SELECT
    SourceSchemaName + '.' + SourceDataObject AS DataObject,
    IsActive,
    RetentionPeriod,
    ArchivingRetentionPeriod
FROM MetadataZoneCore.ArchivingDataObject
ORDER BY SourceSchemaName, SourceDataObject

-- Check scheduled job status (SQL Server Agent)
SELECT
    j.name AS JobName,
    ja.run_requested_date AS LastRunTime,
    ja.last_executed_step_id,
    CASE ja.last_run_outcome
        WHEN 0 THEN 'Failed'
        WHEN 1 THEN 'Succeeded'
        WHEN 3 THEN 'Canceled'
        WHEN 5 THEN 'Unknown'
    END AS LastRunOutcome
FROM msdb.dbo.sysjobs j
LEFT JOIN msdb.dbo.sysjobactivity ja ON j.job_id = ja.job_id
WHERE j.name LIKE '%Archiving%'
ORDER BY ja.run_requested_date DESC

Solutions:

Verify data objects are set to IsActive = 1
Check that scheduled job is enabled
Verify database connectivity and permissions

Issue: Archiving Fails with Errors

Symptoms:

ArchivingStatusNumber > 1 in logs
Error messages in ArchivingLogMessage.ErrorMessage

Diagnostic Query:

-- Find archiving errors
SELECT
    InscriptionTimestamp,
    SourceSchemaName + '.' + SourceDataObject AS DataObject,
    ArchivingStatusNumber,
    ErrorMessage,
    RowsRead,
    RowsArchived
FROM MetadataZoneCore.ArchivingLogMessage
WHERE ArchivingStatusNumber > 1
ORDER BY InscriptionTimestamp DESC

Common Causes:

Missing index on archiving column
Archive schema does not exist
Insufficient permissions
Archive table structure mismatch with source
Blocking/locking conflicts

Issue: No Data Being Archived

Symptoms:

RowsRead = 0 or RowsArchived = 0 consistently
Data not moving to archive table

Checks:

-- Verify data eligible for archiving exists
DECLARE @SourceSchema NVARCHAR(128) = N'MetadataZone'
DECLARE @SourceTable NVARCHAR(128) = N'ProcessStepVapourTrail'
DECLARE @ArchivingColumn NVARCHAR(128) = N'ProcessEndDateTime'
DECLARE @RetentionPeriod INT = 30

-- Dynamic SQL to check eligible records
DECLARE @sql NVARCHAR(MAX) = N'
SELECT
    COUNT(*) AS EligibleRecords,
    MIN([' + @ArchivingColumn + ']) AS OldestRecord,
    MAX([' + @ArchivingColumn + ']) AS NewestRecord,
    DATEADD(DAY, -' + CAST(@RetentionPeriod AS NVARCHAR(10)) + ', SYSUTCDATETIME()) AS ArchivingThreshold
FROM [' + @SourceSchema + '].[' + @SourceTable + ']
WHERE [' + @ArchivingColumn + '] < DATEADD(DAY, -' + CAST(@RetentionPeriod AS NVARCHAR(10)) + ', SYSUTCDATETIME())'

EXEC sp_executesql @sql

Solutions:

Verify retention period is not too short (no eligible data yet)
Check archiving column contains valid date data
Confirm data exists in source table

Issue: Archive Tables Growing Too Large

Symptoms:

Archive tables consuming excessive storage
RowsDeletedPhysical = 0 consistently

Checks:

-- Check archive table sizes
SELECT
    s.name AS SchemaName,
    t.name AS TableName,
    SUM(p.rows) AS RowCount,
    SUM(a.total_pages) * 8 / 1024 AS TotalSizeMB
FROM sys.tables t
INNER JOIN sys.schemas s ON t.schema_id = s.schema_id
INNER JOIN sys.indexes i ON t.object_id = i.object_id
INNER JOIN sys.partitions p ON i.object_id = p.object_id AND i.index_id = p.index_id
INNER JOIN sys.allocation_units a ON p.partition_id = a.container_id
WHERE s.name LIKE '%Archive'
  AND i.index_id <= 1
GROUP BY s.name, t.name
ORDER BY TotalSizeMB DESC

Solutions:

Review ArchivingRetentionPeriod - may be too long
Verify deletion process is running
Check for errors in deletion phase
Consider implementing data compression

Frequently Asked Questions

Q: Can I change retention periods for existing archiving configurations?

A: Yes, use the UPDATE operation:

EXEC MetadataZoneCore.uspSetArchivingDataObject
     @SetArchivingExec = N'U',
     @SourceSchemaName = N'YourSchema',
     @SourceDataObject = N'YourTable',
     @RetentionPeriod = 60,  -- New value
     @Comment = N'Updated retention period'

Q: What happens if I delete an archiving configuration?

A: The configuration is removed from ArchivingDataObject, but:

The archive table is NOT automatically dropped
Existing archived data remains in the archive table
You must manually drop the archive table if desired

-- Unregister configuration
EXEC MetadataZoneCore.uspSetArchivingDataObject
     @SetArchivingExec = N'D',
     @SourceSchemaName = N'YourSchema',
     @SourceDataObject = N'YourTable'

-- Manually drop archive table (if desired)
-- DROP TABLE YourSchemaArchive.YourTableArchive

Q: Can I temporarily disable archiving without deleting the configuration?

A: Yes, set IsActive = 0:

EXEC MetadataZoneCore.uspSetArchivingDataObject
     @SetArchivingExec = N'U',
     @SourceSchemaName = N'YourSchema',
     @SourceDataObject = N'YourTable',
     @IsActive = 0,
     @Comment = N'Temporarily disabled for maintenance'

Q: How do I query both active and archived data together?

A: Use a UNION query:

SELECT * FROM MetadataZone.ProcessStepVapourTrail
WHERE SomeCondition = 'value'

UNION ALL

SELECT * FROM MetadataZoneArchive.ProcessStepVapourTrailArchive
WHERE SomeCondition = 'value'

ORDER BY ProcessEndDateTime DESC

Q: What archiving column data types are supported?

A: The archiving column must contain data that can be converted to a date:

DATE, DATETIME, DATETIME2
String representations (e.g., '2025-01-15')
Integer formats (e.g., 20250115, 202501, 2025)

See uspSetArchivingDataObject - Date Format for details.

Q: Can I have different retention periods for different tables?

A: Yes, specify custom retention periods when registering:

-- Table 1: Short retention
EXEC MetadataZoneCore.uspSetArchivingDataObject
     @SetArchivingExec = N'A',
     @SourceSchemaName = N'dbo',
     @SourceDataObject = N'DebugLogs',
     @RetentionPeriod = 7,
     @ArchivingRetentionPeriod = 23

-- Table 2: Long retention
EXEC MetadataZoneCore.uspSetArchivingDataObject
     @SetArchivingExec = N'A',
     @SourceSchemaName = N'dbo',
     @SourceDataObject = N'AuditTrail',
     @RetentionPeriod = 90,
     @ArchivingRetentionPeriod = 2555

Data Object Registration: Details on registering data objects for archiving → uspSetArchivingDataObject
Archiving Execution: Details on executing archiving processes → uspArchivingExecute
Framework Configuration: Global retention period settings → uspConfigExMeXFramework
Best Practices: Recommendations for optimal archiving configuration → Archiving Best Practices

Examples

Example 1: Registering a Data Object

For more examples of how to register a data object for archiving, see uspSetArchivingDataObject.

DECLARE @ReturnProcessStatusNumber INT

EXEC @ReturnProcessStatusNumber = MetadataZoneCore.uspSetArchivingDataObject
     @SetArchivingExec          = N'A',
     @SourceSchemaName          = N'MetadataZone',
     @SourceDataObject          = N'ProcessStepVapourTrail',
     @ArchivingColumnCode       = N'ProcessEndDateTime',
     @IsActive                  = 1,
     @RetentionPeriod           = 30,
     @ArchivingRetentionPeriod  = 365,
     @Comment                   = N'Process execution logs - 30+365 day retention'

SELECT @ReturnProcessStatusNumber AS [Return Status]
-- 0 = Success
GO

Example 2: Executing Archiving

-- Execute archiving for all registered and active data objects
DECLARE @ReturnStatus INT

EXEC @ReturnStatus = MetadataZoneCore.uspArchivingExecute

SELECT @ReturnStatus AS [Return Status]
-- 0 = Success, check ArchivingLogMessage for details
GO

This command triggers the archiving process, which:

Identifies all active archiving configurations
Processes them in order (by ArchivingExecutionOrder)
Archives eligible records based on retention periods
Deletes old records from archives based on archive retention periods
Logs all operations to MetadataZoneCore.ArchivingLogMessage

Example 3: Monitoring Archiving Statistics

-- Daily archiving summary
SELECT
    CAST(InscriptionTimestamp AS DATE) AS ArchivingDate,
    COUNT(DISTINCT SourceDataObject) AS TablesProcessed,
    SUM(RowsRead) AS TotalRowsProcessed,
    SUM(RowsArchived) AS TotalRowsArchived,
    SUM(RowsDeletedPhysical) AS TotalRowsDeleted,
    SUM(CASE WHEN ArchivingStatusNumber = 0 THEN 1 ELSE 0 END) AS SuccessCount,
    SUM(CASE WHEN ArchivingStatusNumber > 1 THEN 1 ELSE 0 END) AS ErrorCount
FROM MetadataZoneCore.ArchivingLogMessage
WHERE InscriptionTimestamp >= DATEADD(DAY, -30, GETDATE())
GROUP BY CAST(InscriptionTimestamp AS DATE)
ORDER BY ArchivingDate DESC

Example 4: Viewing Current Configuration

-- View all archiving configurations
SELECT
    SourceSchemaName + '.' + SourceDataObject AS DataObject,
    ArchivingSchemaName + '.' + ArchivingDataObject AS ArchiveTable,
    ArchivingColumnCode,
    CASE IsActive WHEN 1 THEN 'Yes' ELSE 'No' END AS Active,
    RetentionPeriod AS [Active Days],
    ArchivingRetentionPeriod AS [Archive Days],
    RetentionPeriod + ArchivingRetentionPeriod AS [Total Days],
    ArchivingExecutionOrder AS [Exec Order],
    SUBSTRING(Comment, 1, 50) AS Comment
FROM MetadataZoneCore.ArchivingDataObject
ORDER BY ArchivingExecutionOrder, SourceSchemaName, SourceDataObject

Data Model

Detailed Data Model Diagram

Next Steps:

Review Best Practices for optimization recommendations
Explore uspSetArchivingDataObject for detailed registration options
Check uspArchivingExecute for execution details

Purpose​

Motivation​

Applicability​

Structure​

Retention Period Concept​

Data Lifecycle Visualization​

Archiving Process Flow​

Timeline Example​

Implementation Guidelines​

Overview​

Step 1: Create Archive Schema​

Step 2: Register Data Objects for Archiving​

Step 3: Schedule Archiving Execution​

Step 4: Monitor Archiving Logs​

Pre-Configured Archiving​

Considerations and Consequences​

Considerations​

Consequences​

Troubleshooting​

Common Issues and Solutions​

Issue: Archiving Not Running​

Issue: Archiving Fails with Errors​

Issue: No Data Being Archived​

Issue: Archive Tables Growing Too Large​

Frequently Asked Questions​

Q: Can I change retention periods for existing archiving configurations?​

Q: What happens if I delete an archiving configuration?​

Q: Can I temporarily disable archiving without deleting the configuration?​

Q: How do I query both active and archived data together?​

Q: What archiving column data types are supported?​

Q: Can I have different retention periods for different tables?​

Related Topics​

Examples​

Example 1: Registering a Data Object​

Example 2: Executing Archiving​

Example 3: Monitoring Archiving Statistics​

Example 4: Viewing Current Configuration​

Data Model​

Detailed Data Model Diagram​

Purpose

Motivation

Applicability

Structure

Retention Period Concept

Data Lifecycle Visualization

Archiving Process Flow

Timeline Example

Implementation Guidelines

Overview

Step 1: Create Archive Schema

Step 2: Register Data Objects for Archiving

Step 3: Schedule Archiving Execution

Step 4: Monitor Archiving Logs

Pre-Configured Archiving

Considerations and Consequences

Considerations

Consequences

Troubleshooting

Common Issues and Solutions

Issue: Archiving Not Running

Issue: Archiving Fails with Errors

Issue: No Data Being Archived

Issue: Archive Tables Growing Too Large

Frequently Asked Questions

Q: Can I change retention periods for existing archiving configurations?

Q: What happens if I delete an archiving configuration?

Q: Can I temporarily disable archiving without deleting the configuration?

Q: How do I query both active and archived data together?

Q: What archiving column data types are supported?

Q: Can I have different retention periods for different tables?

Related Topics

Examples

Example 1: Registering a Data Object

Example 2: Executing Archiving

Example 3: Monitoring Archiving Statistics

Example 4: Viewing Current Configuration

Data Model

Detailed Data Model Diagram
